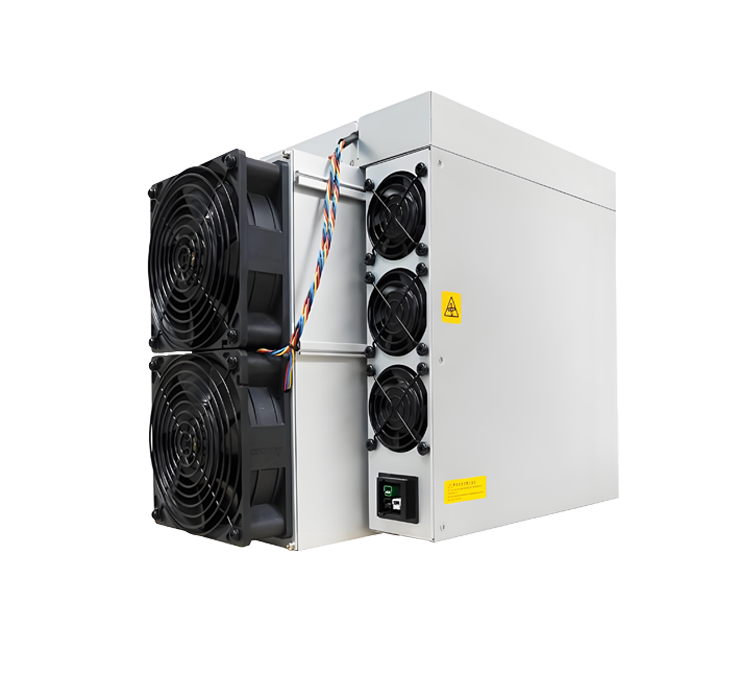

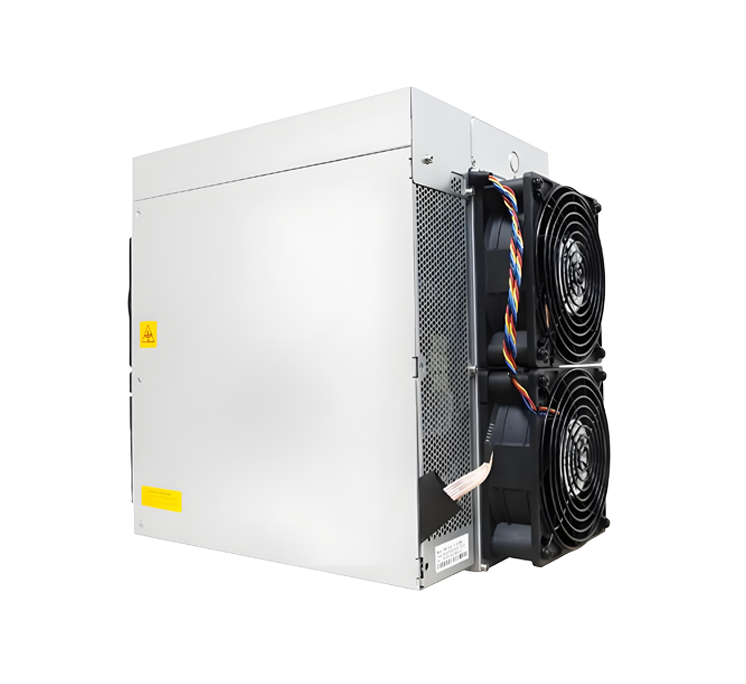

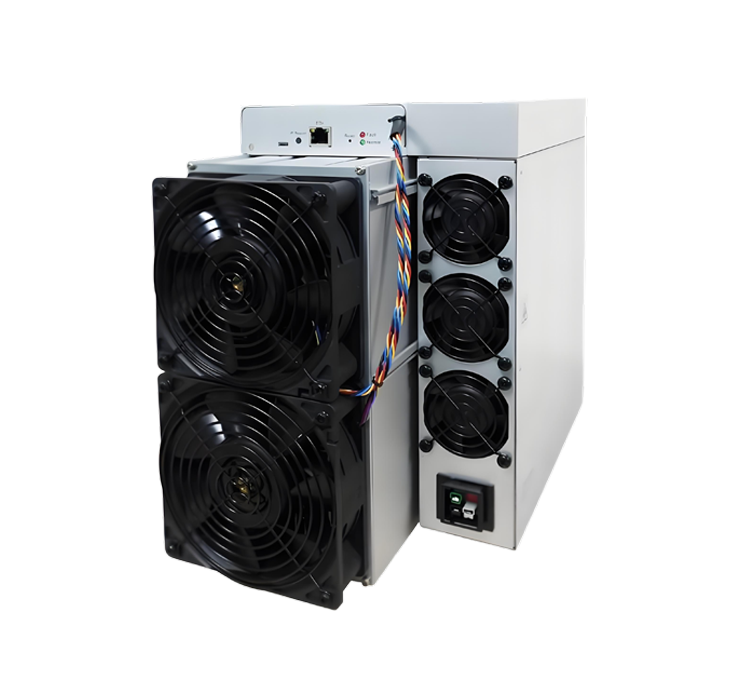

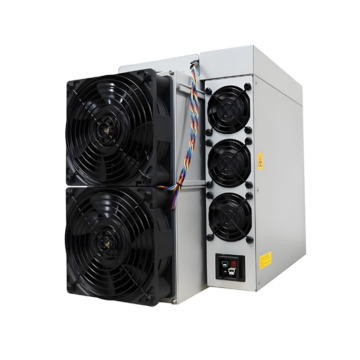

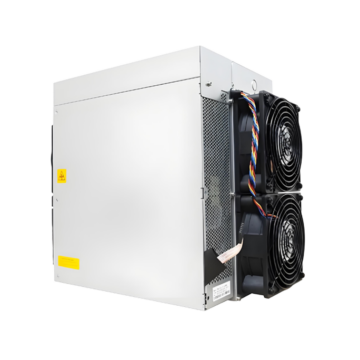

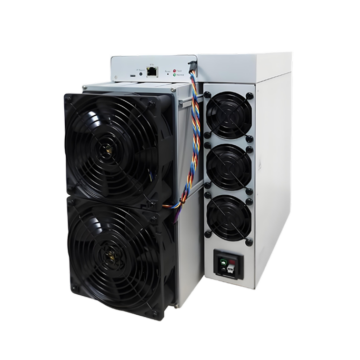

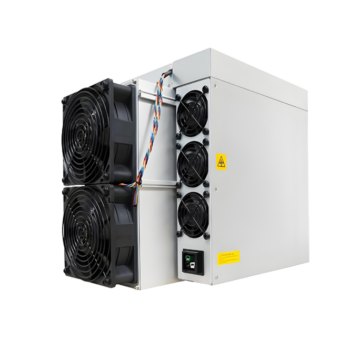

Bitmain Antminer X9 is a RandomX mining server marketed by BITMAIN for Monero (XMR). Its reference performance is 1000 kH/s at 2472 W, equivalent to approximately 2.472 J/kH. Daily miner electricity use is 59.33 kWh at continuous reference power, before external cooling.
Use 220-277 V AC, Ethernet and suitable ventilation. Confirm the supplied unit revision, firmware and current pool compatibility. These are manufacturer reference figures, not individual unit test results.
New miners come with a 6 months warranty from the manufacturer.
References: Bitmain Antminer X9 official product specifications; Monero mining guidance; BT-Miners Monero mining guide.
Technical Specifications
| Product Glance | Value |
|---|---|
| Model | Antminer X9 |
| Crypto algorithm/coins | RandomX / Monero (XMR); verify current firmware and pool compatibility |
| Typical hashrate | 1000 kH/s ±3% (1 MH/s) |
| Power on wall @35℃, Watt | 2472 W ±5% at 25 °C inlet air |
| Power efficiency on wall@35℃ | 2.472 J/kH (calculated from reference power and hashrate) |
| Detailed Characteristics | Value |
|---|---|
| Power Supply | |
| Phase | 1 (single-phase AC) |
| Input voltage, Volt | 220-277 V AC |
| Input frequency range, Hz | 50/60 Hz |
| Input max current, Amp | 20 A maximum input rating; single-phase |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100 Mbps |
| Server size(length*width*height, w/o package), mm | 361 x 219 x 293 mm (L x W x H; official shop reference) |
| Server size(length*width*height, with package), mm | 630 x 350 x 430 mm (L x W x H) |
| Net weight, kg | 17.5 kg (official shop reference) |
| Gross weight, kg | 20.2 kg (with package) |
| Noise@30℃, dBA | 76 dBA at 25 °C; maximum fan speed reference |
| Environment Requirements | Value |
|---|---|
| Storage temperature, °C | -40 to 70 °C |
| Operation humidity(non-condensing), RH | 10-90% RH, non-condensing |
| Operation temperature,°C | -20 to 45 °C ambient; altitude derating applies |
| Operation altitude, m | ≤2000 m; above 900 m reduce maximum operating temperature by 1 °C per additional 300 m |
| What's in the Box | Value |
|---|---|
| Original factory mining machinery | ✓ |
| Power supply | ✓ |
| Shockproof packaging | ✓ |
(1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power on wall and power efficiency on wall fluctuate by ±5%.
(2) Caution: Wrong input voltage may cause server damaged.
(3) The noise is loudest when the fan is under maximum RPM(rotation per minute).
(4) When the server is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1℃ for every increase of 300m.
