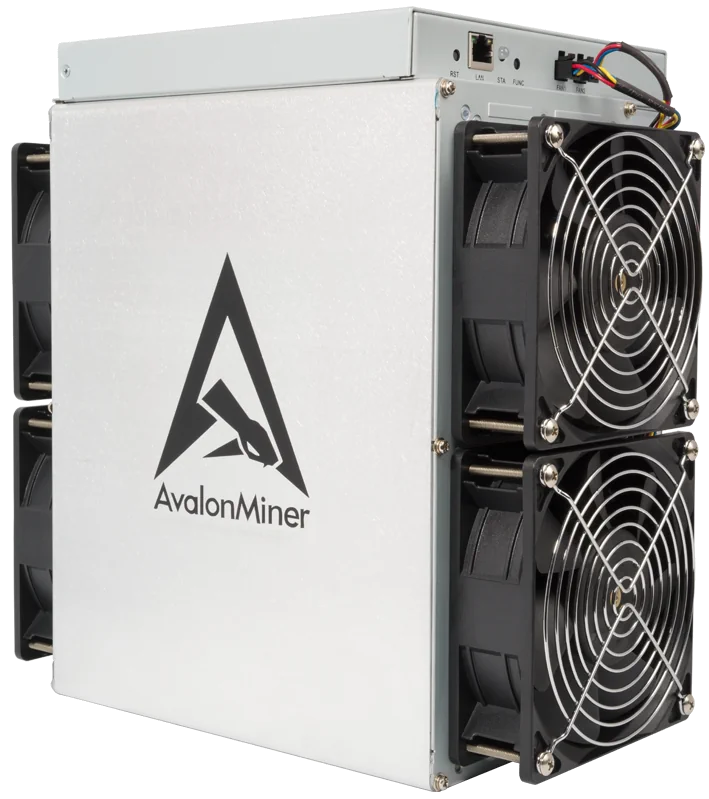

Avalon A1446 Description
Model AvalonMiner A1446 from Canaan mining SHA-256 algorithm with a maximum hashrate of 135Th/s for a power consumption of 3310W.
Please fill in all 3 pools for the Canaan Avalonminer units to operate.
Technical Specifications
| Product Glance | Value |
|---|---|
| Model | Canaan Avalon A1446 |
| Crypto algorithm/coins | SHA-256 / Bitcoin; other SHA-256 networks require matching pool support |
| Typical hashrate | 135 TH/s reference; confirm selected batch and mode |
| Power on wall @35℃, Watt | 3310 W reference; manufacturer reference configuration; supplied versions may differ |
| Power efficiency on wall@35℃ | 24.52 J/TH calculated from 3310 W / 135 TH/s; same reference configuration |
| Detailed Characteristics | Value |
|---|---|
| Power Supply | |
| Input voltage, Volt | Confirm the exact supplied PSU input voltage, phase and cable rating before connecting power |
| Hardware Configuration | |
| Networking connection mode | Confirm networking interface and firmware for supplied revision |
| Server size(length*width*height, w/o package), mm | 331mm x 195mm x 292mm |
| Server size(length*width*height, with package), mm | 420mm x 290mm x 395mm |
| Net weight, kg | 12.8kg |
| Gross weight, kg | 14.1kg |
| Noise@30℃, dBA | 75 |
| Environment Requirements | Value |
|---|---|
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
| Operation temperature,°C | -20~45 |
| Operation altitude, m | ≤2000 |
| What's in the Box | Value |
|---|---|
| Original factory mining machinery | ✓ |
| Power supply | ✓ |
| Shockproof packaging | ✓ |
(1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power on wall and power efficiency on wall fluctuate by ±5%.
(2) Caution: Wrong input voltage may cause server damaged.
(3) The noise is loudest when the fan is under maximum RPM(rotation per minute).
(4) When the server is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1℃ for every increase of 300m.
