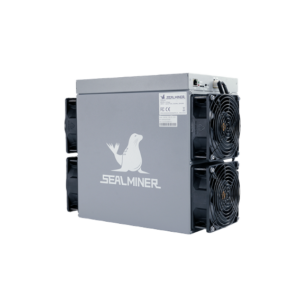

SealMiner DL1 Air AIR Description
Bitdeer SealMiner DL1 Air is an ASIC miner designed for Scrypt algorithm, specifically targeting DOGE (Dogecoin) and LTC (Litecoin). It delivers a maximum hashrate of 25Gh/s while consuming 3725W of power, resulting in an energy efficiency of 0.149j/Mh.
For Brand NEW Miner, Bitdeer Provides 6 months of factory warranty
Technical Specifications
| Product Glance | Value |
|---|---|
| Model | SealMiner DL1 Air |
| Crypto algorithm/coins | Scrypt I LTC+DOGE+BELLS+JKC+LKY+PEP |
| Typical hashrate | 24~26 G ±5% |
| Power on wall @35℃, Watt | 3576~3874 ±10% |
| Power efficiency on wall@35℃ | 149 ±5% |
| Detailed Characteristics | Value |
|---|---|
| Power Supply | |
| Input voltage, Volt | 220-277 |
| Input frequency range, Hz | 50/60 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Server size(length*width*height, w/o package), mm | 197*365*292 |
| Server size(length*width*height, with package), mm | 308*482*423 |
| Net weight, kg | 15.5 |
| Gross weight, kg | 17.5 |
| Environment Requirements | Value |
|---|---|
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
| Operation temperature,°C | -20~45 |
| Operation altitude, m | ≤2000 |
| What's in the Box | Value |
|---|---|
| Original factory mining machinery | ✓ |
| Power supply | ✓ |
| Shockproof packaging | ✓ |
Notes
(1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power on wall and power efficiency on wall fluctuate by ±5%.
(2) Caution: Wrong input voltage may cause server damaged.
(3) The noise is loudest when the fan is under maximum RPM(rotation per minute).
(4) When the server is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1℃ for every increase of 300m.
