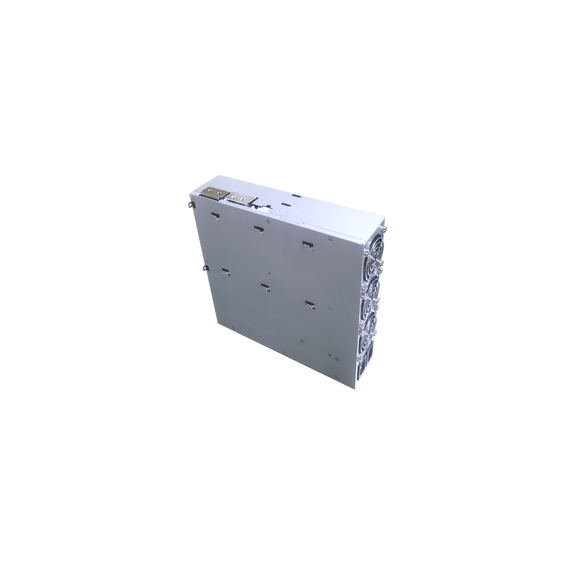

Antminer Replacement Power Supply APW9_14.5V- 21V EMC For S17, S17 Pro and T17

US$600.00

Description



APW9
OUT1
DC Voltage 14.5V-21V
Rated Current(220V input) 170A
Rated Power (220V input) 3600W
Ripple & Noise <1%
Source Regulation <1%
Load Regulation <1%
Setup, Rise Time <2S
Power off Protection Trip Time >10mS
OUT2
DC Voltage 12.3V
Rated Current(220V input) 12A
Ripple & Noise <1%
Voltage Accuracy 12.2V-12.4V
Source Regulation <1%
Load Regulation <1%
Setup, Rise Time <2S
Power off Protection Trip Time >10mS
Input
Voltage Range 200-240V AC
Frequency Range 47-63Hz
Power Factor >0.99(full load)
Leakage Current <1.5mA(220V 50Hz)
Protection
Low-voltage Input 80-89V AC
Output Short Circuit Yes
Output Overcurrent 95-130A
Overheat Protection Yes
Environment
Operating Temperature -20-60℃
Operating Humidity 20%-90%RH(non-condensing)
Altitude < 2000m
Structure
Dimensions 204.8SSS*157*42.5mm
Weight 3.2kg
Cooling Mode force-air cooling
Noise 67dBA

Additional information

Weight N/A
