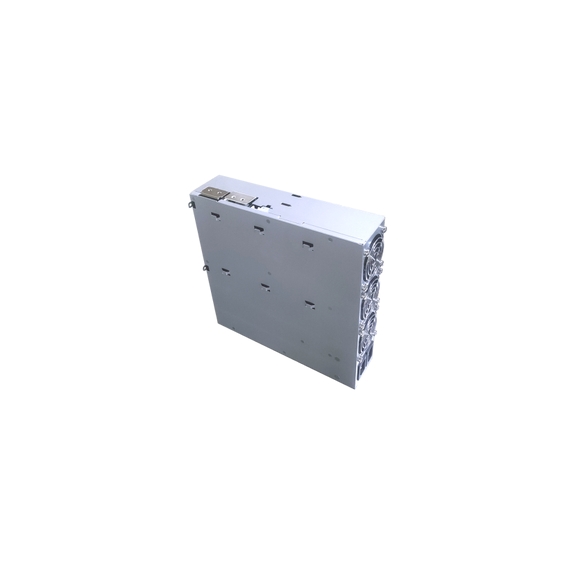

Antminer Replacement Power Supply APW12_12V-15V EMC For S19, S19 Pro, S19 XP and T19

US$390.00

Description



APW12
OUT1
DC Voltage  12V-15V
Rated Current(220 V input) 233A
Ripple & Noise <1%
Line Regulation <1%
Load Regulation <1%
Setup Time <2S
Short Circuit Protection >10mS
OUT2
DC Voltage 12.3V
Rated Current(220 V input) 15A
Ripple & Noise <1%
Voltage Accuracy 12.2V—12.4V
Line Regulation <1%
Load Regulation <1%
Setup Time <2S
Short Circuit Protection >10mS
Input
Voltage Range 200-240V AC
Frequency Range 47-63Hz
Power Factor >0.99(full load)
Leakage Current <1.5mA(220V 50Hz)
Protection
 Low-voltage Input 80-89V AC
Output Short Circuit Yes
Overheat Protection Yes
Over-current Output 291A-350A
(protection value varies under different voltage)
Environment
Operating Temperature -20-45℃
Operating Humidity 20%-90%RH(non-­condensing)
Altitude < 2000m
Structure
Dimensions 254.6mm*251.6mm*63mm
Net Weight 3.6KG
Cooling System forced‐air cooling
Noise 45dBA
